1.1.1. Satellite cloud cover for Climate modelling#
Production date: 15-10-2024, modified 29-04-2025
Produced by: CNRS
🌍 Use case: Detection of changes in the latitudinal position of cloudiest and clearest regions#
❓ Quality assessment question:#
Which of the C3S satellite datasets provides the smallest uncertainty and biases in cloud fraction?
Clouds are fundamental regulators of the Earth’s climate system, significantly influencing the planet’s radiative budget, hydrological cycle, and global circulation. These factors, in turn, play a crucial role in shaping ecosystems, agriculture, water resources, and weather patterns. The overall impact of clouds on Earth’s climate is determined by various properties, including cloud cover, height, thickness, and microphysical characteristics. Given their substantial influence on climate, cloud properties are extensively studied, both in the present context and in relation to their evolution under climate change. The following notebook focuses on the cloud cover, which strongly impacts the Earth’s climate. A large cloud cover can lead to increased albedo, reflecting more sunlight back into space, which can cool the surface. Conversely, a small cloud cover may result in enhanced solar radiation reaching the Earth’s surface, leading to higher temperatures and altered precipitation patterns.
This analysis utilizes cloud observations from the dataset Cloud properties global gridded monthly and daily data from 1979 to present derived from satellite observations, available at the Climate Data Store. Two complementary Thematic Climate Data Records of cloud properties are provided from two families: CLARA (CM SAF cLoud, Albedo and surface Radiation) and CCI (Climate Change Initiative). These data differ in temporal and horizontal resolution, and three distinct products are available: The two retrieval versions, CLARA-A2 and CLARA-A3, use AVHRR (Advanced Very High Resolution Radiometer) observations, while the CCI product is derived from ATSR2 (Along Track Scanning Radiometer) and AATSR (Advanced ATSR), only covering the period 1995-2012. A CCI intermediate climate data record is available from 2017 onwards, using SLSTR (Sea and Land Surface Temperature Radiometer). The latter is not yet homogenized with the earlier data. Therefore, it is not used in this analysis.
CLARA-A2, CLARA-A3, and CCI use different methods to retrieve cloud properties. This notebook presents a comparative analysis of their cloud cover estimates, both among themselves and against other satellite data [1]. Additionally, it includes a discussion on the comparisons and uncertainty estimates.
📢 Quality assessment statement#
These are the key outcomes of this assessment
CLARA-A3’s global mean cloud cover is 63.5%, falling within the range of the recently updated GEWEX cloud assessment (66% ± 4%), whereas CCI’s global mean cloud cover of 59.3% lies outside this range.
The latitudinal behaviour of cloud cover is consistent between CLARA and CCI, within their uncertainty ranges. In general, CLARA-A3 provides the largest cloud cover, in particular over Southern hemisphere midlatitudes, and CCI the smallest one, with a difference of approximately 4%.
The cloud cover uncertainty of CLARA-A3 varies between 5 to 10%, with largest values in the polar regions, while the one of CCI varies between 10 to 15%, with largest values in the subtropics. No uncertainty estimates are given for CLARA-A2.
In polar regions during winter, the CLARA-A3 cloud cover is already slightly larger than the ones of CLARA-A2 and CCI but still has a negative bias compared to active lidar, which is better suited for cloud detection above snow and ice surfaces.
Geographical patterns show large cloud cover near the equator, in the midlatitudes over ocean, as well as in the stratocumulus regions off the western coasts in the subtropics. Prominent regions with low cloud cover are over the deserts and the subtropical ocean, in particular where one expects open cell cumulus clouds. However, the CCI patterns are much noisier than the ones from CLARA.
Compared to CLARA-A2, the CLARA-A3 cloud cover is larger over ocean, in particular at larger latitudes, and smaller over land. This leads to a slightly larger global mean ocean - land cloud cover difference than the one given by CLARA-A2 in the updated GEWEX cloud assessment of about 15.5%, which lies in the range of the mean over all datasets (15% ± 5%), but is slightly larger than the one from CALIPSO (14%).
📋 Methodology#
The analysis comprises the following steps:
Choose the parameters to use and setup code
Import the relevant libraries. Define the parameters of the analysis and set the dataset requests.
Download CLARA-A3, CLARA-A2 and CCI monthly mean cloud cover and associated uncertainty, for eight years over the common period 2005-2012, over the whole globe.
Filter out months with low-quality status for CLARA-A3.
Compute the zonal means of cloud cover and its uncertainty across all latitudes
Plot the latitudinal annual mean cloud cover and uncertainty
Plot the latitudinal cloud cover during boreal winter and summer
Plot the latitudinal cloud cover difference between boreal summer and winter
Plot the global maps of annual mean cloud cover of the three datasets
Plot the global maps of annual mean cloud cover difference of CCI and CLARA-A2 with CLARA-A3
📈 Analysis and results#
Choose the parameters to use and setup code#
This section includes the library imports and the parameter settings for the analysis.
Import packages#
Show code cell source
import collections
import os
import cartopy.crs as ccrs
import matplotlib.pyplot as plt
import pandas as pd
from c3s_eqc_automatic_quality_control import download, plot
plt.style.use("seaborn-v0_8-notebook")
Define parameters#
Show code cell source
# Time range
start = "2002-05"
stop = "2012-04"
Set the data request#
Show code cell source
collection_id = "satellite-cloud-properties"
request_cci = {
"product_family": "cci",
"time_aggregation": "monthly_mean",
"climate_data_record_type": "thematic_climate_data_record",
"sensor_on_satellite": "aatsr_on_envisat",
"variable": "all_variables",
"origin": "esa",
}
request_clara = {
"origin": "eumetsat",
"variable": ["cloud_fraction"],
"climate_data_record_type": "thematic_climate_data_record",
"time_aggregation": "monthly_mean",
}
requests = collections.defaultdict(list)
for date in pd.date_range(start, stop, freq="1MS"):
time_request = {"year": date.strftime("%Y"), "month": date.strftime("%m")}
requests["CCI"].append(request_cci | time_request)
requests["CLARA-A2"].append(
request_clara | {"product_family": "clara_a2"} | time_request
)
requests["CLARA-A3"].append(
request_clara | {"product_family": "clara_a3"} | time_request
)
requests = dict(requests)
Download the datasets#
In this section, three monthly datasets are downloaded. The CCI files lack “time” information within the xarray coordinates; therefore, the time information is extracted from the file attributes.
In addition, the CLARA-A3 product provides a quality flag labeled “record_status” which indicates the overall status of each month. This flag indicates the quality of the data, and any month identified as low quality is subsequently filtered out.
The three datasets are standardized to ensure uniformity in format.
Show code cell source
def preprocess(ds):
time = pd.to_datetime(ds.attrs["time_coverage_start"].replace("Z", ""))
return ds.assign_coords(time=[time])
def zonal_mean(ds):
return ds.mean("longitude", keep_attrs=True)
def time_mean(ds, remove_bad_values):
if remove_bad_values:
ds = ds.where(ds["record_status"] == 0)
return ds.mean("time", keep_attrs=True)
def standardise(ds, product):
if product == "CCI":
# Cloud fraction in the CCI product is multiplied by 100,
# so that it is coherent with the CLARA products
ds["cfc"] = ds["cfc"] * 100
ds["cfc_unc"] = ds["cfc_unc"] * 100
if product == "CLARA-A3":
# Standardize the name of the uncertainty estimate in the datasets
ds = ds.rename(cfc_unc_mean="cfc_unc")
ds["cfc"].attrs = {"long_name": "Cloud cover", "units": "%"}
return ds
datasets_zonal = {}
datasets_maps = {}
for product, request in requests.items():
print(f"{product=}")
ds = download.download_and_transform(
collection_id,
request,
preprocess=preprocess,
transform_func=zonal_mean,
)
datasets_zonal[product] = standardise(ds, product)
ds = download.download_and_transform(
collection_id,
request,
preprocess=preprocess,
transform_chunks=False,
transform_func=time_mean,
transform_func_kwargs={"remove_bad_values": product == "CLARA-A3"},
)
datasets_maps[product] = standardise(ds, product)
product='CCI'
100%|██████████| 120/120 [00:10<00:00, 11.45it/s]
product='CLARA-A2'
100%|██████████| 120/120 [00:08<00:00, 14.64it/s]
product='CLARA-A3'
100%|██████████| 120/120 [00:10<00:00, 11.53it/s]
Filter out CLARA-A3 low-quality status#
For the CLARA-A3 product, the “record_status” for each month can have the following values: 0 for “ok”, 1 for “void”, and 2 for “bad_quality”. Records marked with “bad_quality” must be filtered out; however, all months have good quality.
Show code cell source
mask = datasets_zonal["CLARA-A3"]["record_status"] == 0
print(f"Number of bad quality data: {(~mask).sum().values}")
# Filter-out low quality data
datasets_zonal["CLARA-A3"] = datasets_zonal["CLARA-A3"].where(mask.compute(), drop=True)
Number of bad quality data: 0
Quality flag “record_status” for each month of the CLARA-A3 data. The values can have the following values: 0 for “ok”, 1 for “void”, and 2 for “bad_quality”.
Results#
In this section, cloud amounts and their associated uncertainty estimates are averaged and presented as a function of latitude. The function “plot_latitudinal_cloud_fraction” is defined, which is later utilized to visualize the latitudinal cloud cover for various data selections: across an entire year, during the summer season, and during the winter season.
Show code cell source
def plot_latitudinal_cloud_fraction(ds, ax, product):
ds = ds.mean(set(ds.dims) - {"latitude"}, keep_attrs=True)
colors = {
"CCI": "dodgerblue",
"CLARA-A2": "orange",
"CLARA-A3": "red",
}
da = ds["cfc"]
ax.fill_between(
ds["latitude"],
da - ds.get("cfc_unc", 0),
da + ds.get("cfc_unc", 0),
color=colors[product],
alpha=0.3,
)
ax.plot(ds["latitude"], da, color=colors[product], label=product)
ax.legend(frameon=False)
ax.set_xlabel("Latitude [degrees]")
ax.set_ylabel(f"{da.long_name} [{da.units}]")
Latitudinal behaviour of cloud cover#
Show code cell source
fig, ax = plt.subplots()
for product, ds in datasets_zonal.items():
plot_latitudinal_cloud_fraction(ds, ax, product)

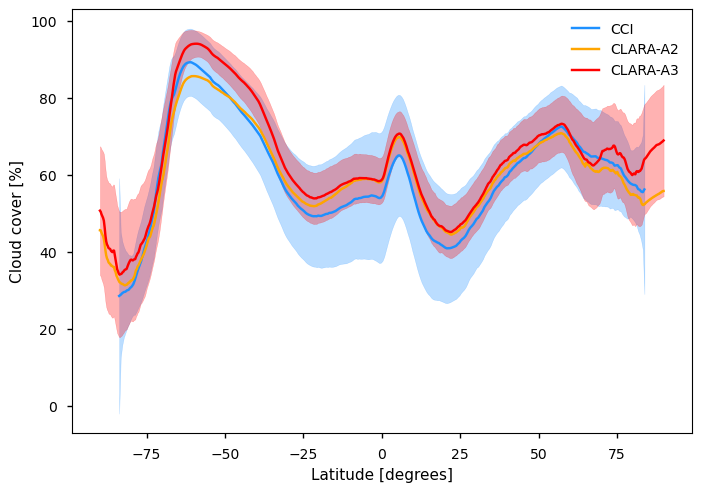

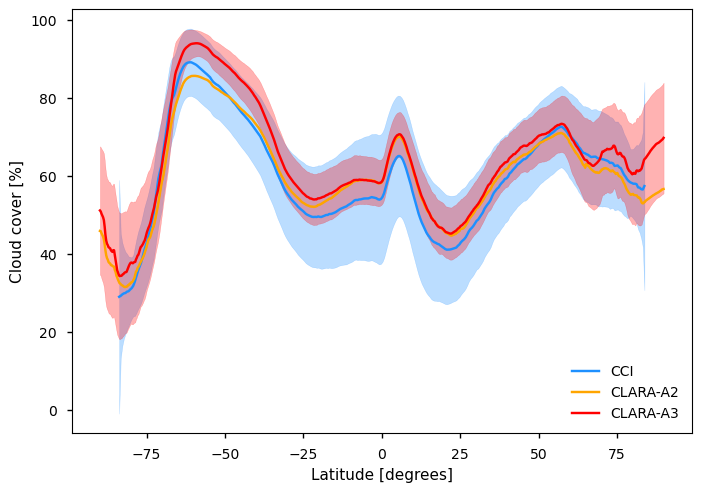

Latitudinal behaviour of annual mean cloud cover for the datasets CCI, CLARA-A2, and CLARA-A3, with the averages calculated for the period 2005-2012. The solid line represents the annual means, while the shaded area indicates the average uncertainty across each latitudinal band. Uncertainty estimates are available for CCI and CLARA-A3.
The latitudinal behaviour of the annual mean cloud cover is visualized, using the monthly mean datasets of CCI, CLARA-A2, and CLARA-A3. The shaded areas represent the zonal annual mean uncertainty. The plot reveals several key features worth highlighting.
The CCI zonal annual mean uncertainties (10 to 15%) are much larger than the ones of CLARA-A3 (5 to 10%), while CLARA-A2 does not provide any estimate of uncertainties.
The latitudinal behaviour of the three datasets is similar, with CLARA-A3 providing the largest cloud cover. Still all the three products agree within the uncertainty of CCI. The latitudinal cloud cover behaviour is also similar to the ones of the 11 datasets reported in the most recent GEWEX Cloud Assessment [1].
The peaks and troughs in latitudinal cloud cover are influenced by global atmospheric circulation. The largest cloud cover is observed in the mid-latitudes, driven by mid and low clouds in the summer and storm clouds in the winter. The narrow peak in the deep tropics corresponds to the Intertropical Convergence Zone, which is associated with heavy precipitation. The troughs are linked to the subsidence regions in the subtropics and Antarctica.
Seasonal variation of zonal mean cloud cover#
Show code cell source
seasons = {"JJA": "Boreal Summer", "DJF": "Boreal Winter"}
fig, axs = plt.subplots(1, len(seasons), figsize=(12, 4))
for product, ds in datasets_zonal.items():
for season, ds_season in ds.groupby("time.season"):
if season not in seasons:
continue
ax = axs[list(seasons).index(season)]
plot_latitudinal_cloud_fraction(ds_season, ax, product)
ax.set_title(seasons[season])

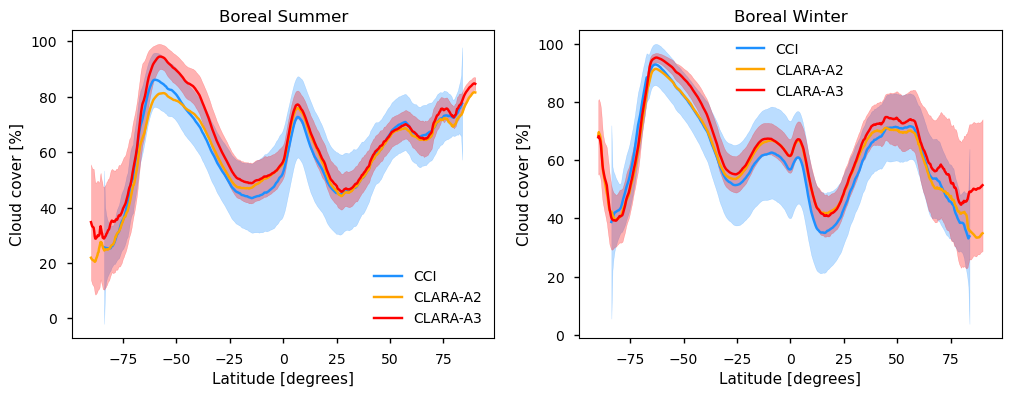

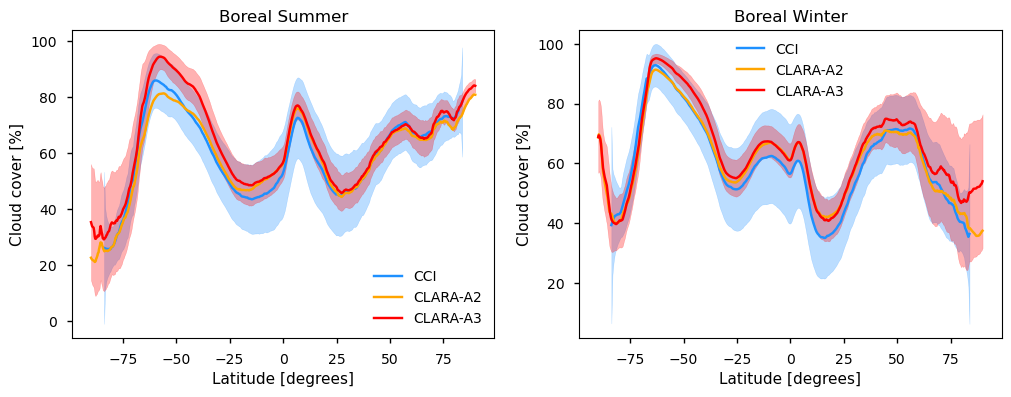

Latitudinal behaviour of mean cloud cover for the datasets CCI, CLARA-A2, and CLARA-A3, separately for boreal Summer (left) and Winter (right). The solid lines represent the zonal means, while the shaded areas indicate the average uncertainties across each latitudinal band.
Show code cell source
fig, ax = plt.subplots()
for product, ds in datasets_zonal.items():
ds = ds.groupby("time.season").mean().sel(season=["DJF", "JJA"])
ds_diff = ds[["cfc"]].diff("season").squeeze("season")
if "cfc_unc" in ds:
ds_diff = ds_diff.merge(ds["cfc_unc"].mean("season"))
ds_diff["cfc"].attrs = {"long_name": "Cloud cover difference", "units": "%"}
plot_latitudinal_cloud_fraction(ds_diff, ax, product)
ax.axhline(0, color="gray", ls="--")
_ = ax.set_title("Boreal Summer - Winter")

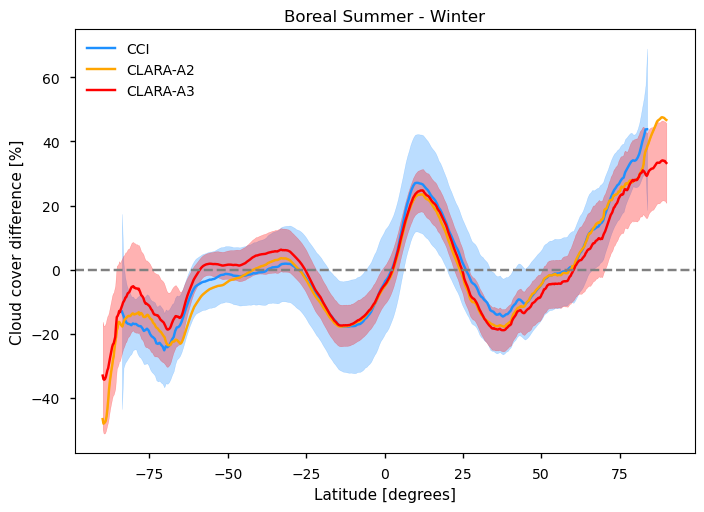

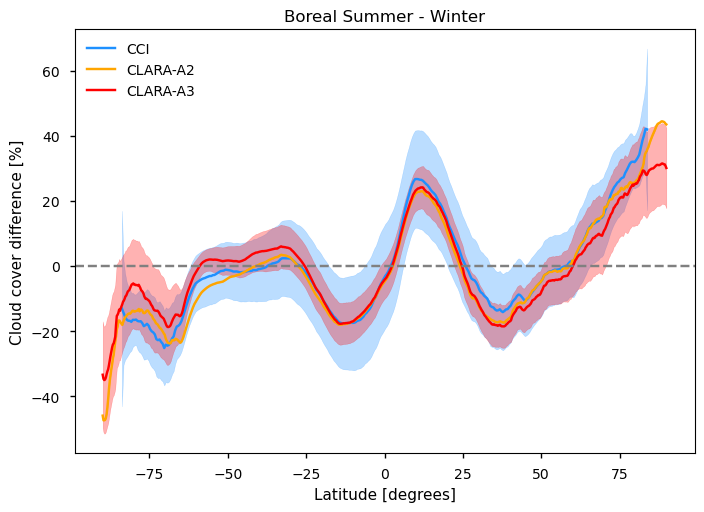

Seasonal difference (Boreal Summer and Winter) of zonal mean cloud cover from CCI, CLARA-A2, and CLARA-A3. The solid line represents the zonal mean difference, while the shaded area indicates the average uncertainty across each latitudinal band.
The datasets again agree in their latitudinal behaviour in both seasons.
At polar latitudes, the CLARA-A3 uncertainties are largest during winter: The lack of illumination reduces the ability to fully exploit all AVHRR channels. Twilight conditions present further challenges due to solar contamination effect. During polar summer, under continuous illumination, the uncertainties are much smaller.
The difference between boreal summer and winter clearly shows the displacement of the ITCZ towards the summer hemisphere in all three datasets. Furthermore, more clouds are detected in polar summer than in polar winter. In general, these seasonal differences are aligned with the ones of the datasets in the recently updated GEWEX cloud assessment, except for CALIPSO (Cloud-Aerosol Lidar and Infrared Pathfinder Satellite Observation) in the polar winter [1]. The latter active instrument is more sensitive to clouds over ice and snow than passive remote sensing, in particular during nighttime [2].
The CCI uncertainty shows less variation, probably because the data are given at a single observation time (10h local time), except a large increase at both latitude edges, probably linked to a decreasing accuracy of measurements near the swath edges.
Global maps#
Show code cell source
for product, ds in datasets_maps.items():
plot.projected_map(
ds["cfc"],
projection=ccrs.Robinson(),
cmap="YlGnBu_r",
levels=9,
robust=True,
extend="both",
)
plt.title(product)
plt.show()

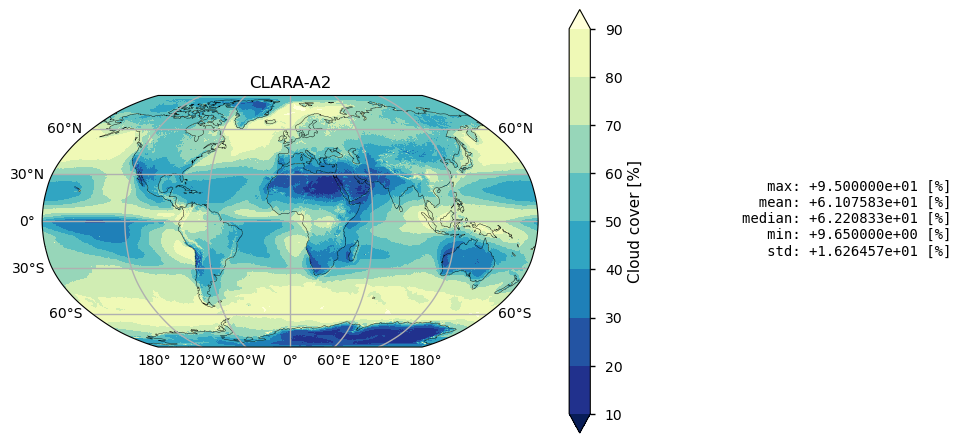

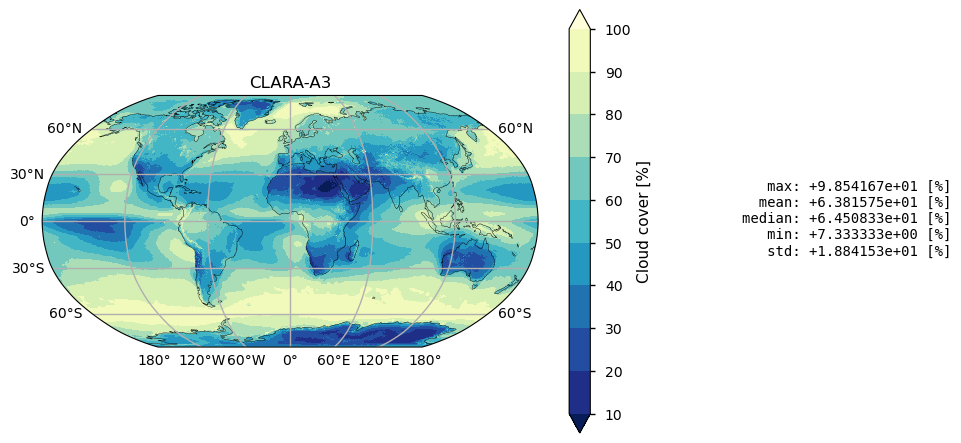

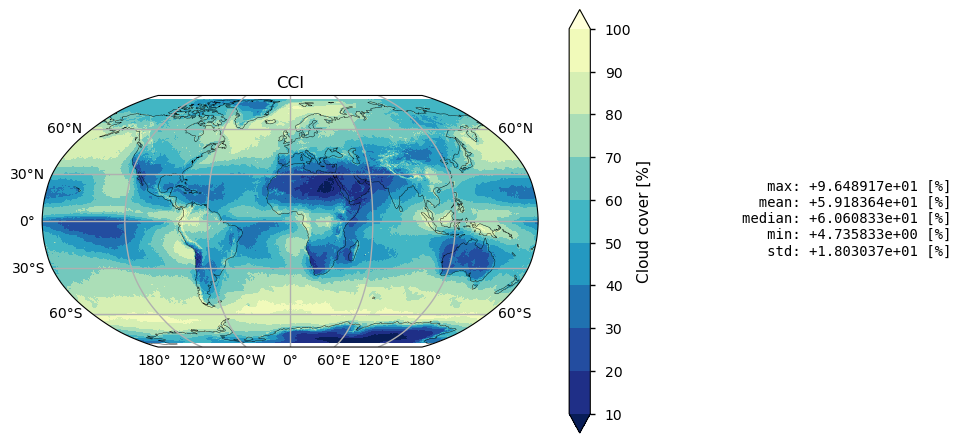

Geographical maps of annual mean cloud cover from CCI (top), CLARA-A2 (middle), and CLARA-A3 (bottom), calculated over the period 2005-2012.
Show code cell source
da_clara_a3 = datasets_maps["CLARA-A3"]["cfc"].coarsen(latitude=2, longitude=2).mean()
for product, ds in datasets_maps.items():
if product == "CLARA-A3":
continue
if product.startswith("CLARA"):
ds = ds.coarsen(latitude=2, longitude=2).mean()
da = ds["cfc"] - da_clara_a3
da.attrs = {"long_name": "Cloud cover difference", "units": "%"}
plot.projected_map(
da,
projection=ccrs.Robinson(),
cmap="RdGy",
levels=9,
robust=True,
extend="both",
)
plt.title(f"{product} - CLARA-A3")
plt.show()

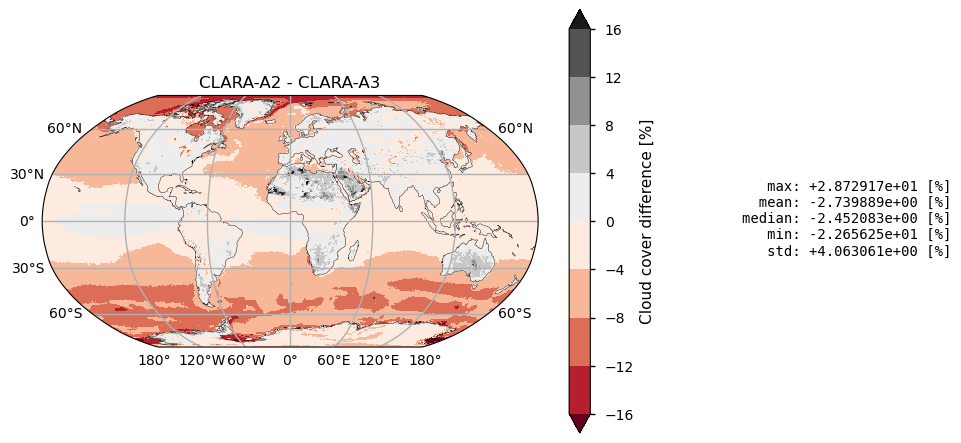

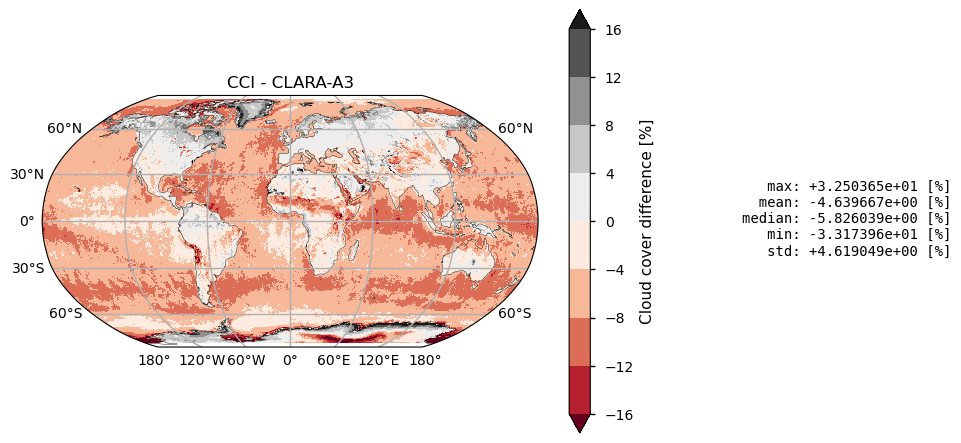

Cloud cover difference maps between CCI (top) and CLARA-A2 (bottom) and CLARA-A3, calculated for the period 2005-2012. The differences are computed at a spatial resolution of 0.5 degrees.
Global means between the three datasets vary from 59.3% (CCI) to 63.5% (CLARA-A3). The latter one is within the range of the global mean of the recently updated GEWEX cloud assessment, given as 66% ± 4%. The geographical patterns of large cloud cover show prominent features near the equator as the Inter-Tropical Convergence Zone (ITCZ), in the midlatitudes over ocean, in particular in the Southern hemisphere, given by winter storm tracks and stratocumulus and the stratocumulus regions off the western coasts in the subtropics. Prominent regions with low cloud cover are over the deserts and the subtropical ocean, in particular where one expects open cell cumulus clouds. However, the CCI patterns are much noisier than the ones from CLARA. This can be seen in the map differences. The difference between CLARA-A3 and CLARA-A2 is positive over ocean, in particular at larger latitudes, and negative over land. This leads to a slightly larger ocean - land cloud cover difference than obtained by CLARA-A2. The global mean cloud cover difference between ocean and land of the latter (15.5%) lies within the range of the one estimated by the updated GEWEX cloud assessment of about 15% ± 5%, but is already slightly larger than the one estimated by CALIPSO (14%). If the CLARA-A3 data would be part of the updated GEWEX cloud assessment database, this would have made the comparison with results from CALIPSO easier.
